Insulated Glass from FireLite®
FireLite-IGUs are fire-rated insulated glass units that provide outstanding fire protection and clear visibility. These fire-rated glass units are composed of two materials: FireLite's fire-rated clear transparent ceramic thick glazing material and either tempered or annealed float glass products.
The UL Classified FireLite ceramic glazing is 3/16" (5mm) thick and features a "wireless" appearance. FireLite fire-rated insulated glass units are listed for applications requiring 20, 45, and 60-minute fire ratings with required Hose Stream Test and Positive Pressure Tests (UL 10C). With standard and premium optical surface grade options available, FireLite fire-rated glass provides superior protection for a wide range of applications.
Key Features for Fire-Rated Insulated Glass Units
- Fire-rated up to 90 minutes with required Hose Stream Test
- Passes the Positive Pressure Test standards of UL 10C, UBC 7-2 and UBC 7-4
- Impact Resistant Safety Rated meeting ANSI.Z97.1 and CPSC 16 CFR1201 (Cat. I and II)
- Withstands sudden Thermal Shock
- STC Ratings of 35 dB and up to 38 dB
- Provides a clear view and is completely wireless
Customization Options for Fire-Rated Glass Units
We offer several glass customization options for enhanced performance or modified appearance. Fire-rated insulated glass customization options include:
- Multiple surface modification options, including Low-E for Energy Efficiency, STC, Tinted, Reflective, 1-Way Mirror, Lightly Frosted, and X-Ray Protective
- Larger pane sizes available (See FireLite-NT approved Listing sizes and limits)
- Available in two optical surface grades: FireLite Standard and FireLite Premium
- Available laminated as Impact Resistant FireLite-Plus
- Can be lightly sandblasted or etched with graphics or logos on one side
- Also available in insulated glass units as FireLite-NT-IGU or FireLite-Plus IGU (Contact Ray-Bar for details)
Industrial & Commercial Applications for Fire-Rated Insulated Glass
The fire-rated insulated glass units at Ray-Bar are used in doors, walls, windows, partitions, and other locations in commercial, industrial, and municipal settings. Common applications for insulated glass units include:
- Corporate office buildings
- Government facilities
- Hospitals, clinics, and healthcare facilities
- Hotels and residential apartment buildings
- Retail stores
- Schools and educational centers
- Warehouses & Manufacturing facilities
- And more
Additional Product Details and Specifications for Fire-Rated IGUs

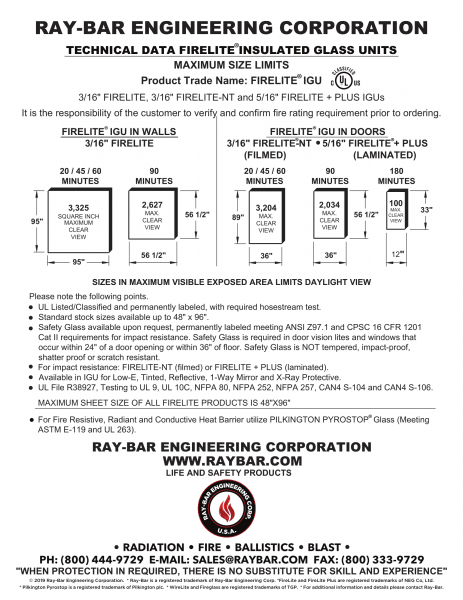

Viewing Area Specifications
- 60-Minute Rated Walls or Partitions: Maximum exposed viewing area: 3,325 square inches, maximum dimension (width or height): 95"
- 90-Minute Rated Walls: Maximum exposed viewing area: 2,627 square inches, maximum dimension (width or height): 56-1/2"
- Non-Temperature Rise Fire-Rated Doors (20, 45, and 60-Minute Ratings): Maximum exposed viewing area: 3,204 square inches, maximum width: 36", maximum height: 89"
- Non-Temperature Rise Fire Doors (90-Minute Rating): Maximum exposed viewing area: 2,034 square inches, maximum width: 36", maximum height: 56-1/2"
- Temperature Rise Fire Doors (20, 45, 60, and 90-Minute Ratings): Maximum exposed viewing area: 100 square inches, maximum width is 12", maximum height is 33"
Impact Safety Ratings
Fire-rated insulated glass units can be either filmed or laminated and labeled as meeting the Impact Resistance requirements of ANSI Z97.1 and CPSC 16 CFR1201 (Cat I and Cat II) as required per IBC 2406 Safety Glazing in Hazardous Locations.
Impact Resistant locations include any windows in a wall within 24 inches of a door opening or 18 inches of the floor, borrowed lites, sidelites, and transoms. This also applies to any glazing occurring in a swinging or sliding door or other areas with a high risk of human impact.
*Note: This product is not a barrier to radiant heat. This product does not meet ASTM E-119 or UL 263 test standards. If your project requires a "barrier to heat" product, please visit the Pilkington PyroStop product webpage.
Certifications, Listings, and Approvals
- This FireLite product is Classified and labeled by Underwriters Laboratories, Inc and Underwriters Laboratories of Canada.
- Ray-Bar's UL File number for labeled fire-rated glazing assemblies is R38927.
- Tests performed in accordance with UL 9, UL 10B, CSFM 43.7, NFPA 80, NFPA 252, NFPA 257, UBC 43.4, UBC 7-2, UBC 7-4,
CAN4 S-104 and CAN4 S-106. - And approved for use in Los Angeles, CA: LARR 25798
- Also approved for use in New York City, NY: MEA 290-90-M-6.
Contact Us to Learn How Ray-Bar Can Be Your FireLite® Insulated Glass Unit Supplier
For 80+ years, Ray-Bar Engineering has set the standard in fabricating fire-rated glass and manufacturing other protective glass products and related accessories. We proudly serve commercial, medical, and industrial customers nationwide, providing top-quality custom fire rated glass solutions for demanding applications. Our expert engineers and rigorous manufacturing practices ensure your products meet and exceed building industry quality, safety, and performance standards.
Contact us today to learn how we can promptly supply you with the best fire-rated glass solution for meeting your project's needs. For pricing estimates on your quote or order, request a quote online. Need other fire-rated IGUs? Explore our fire-resistant ballistic IGUs, WireLite NT IGUs, and other IGU products. With the fastest fabrication and order turnaround times and quick shipping, Ray-Bar Engineering is your source for FireLite® Insulated Glass Units and other unparalleled fire-rated glass products.
